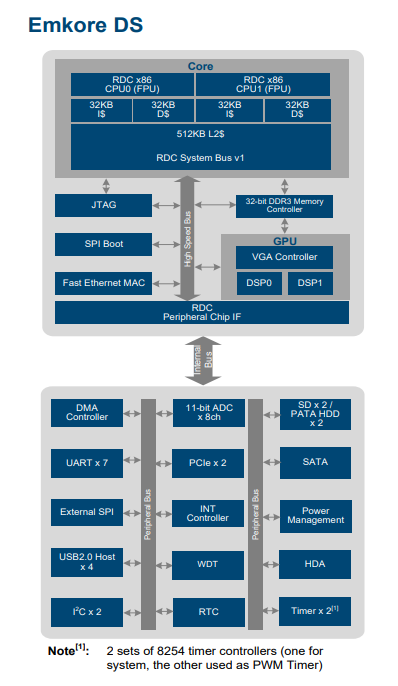

产品中心 RDC® Emkore™ DE及Emkore™ DS是RDC®全新的处理器平台系列，采用40奈米制程的Emkore™系列搭载最新一代低功耗双核处理器R3600，支持DDR3内存并整合2D图形处理器，H.264视讯格式和1080p Full HD高画质影像播放硬件译码器及集成周边芯片RDC® C6037或 RDC® C6038。在功耗与性能取得完美平衡点的RDC® R3600，提供了单核处理器的功耗与双核处理器的优异性能表现，两个独立的数字信号处理器负责影像运算处理或其它数字运算，在不牺牲系统效率下实现多任务处理的高效能并提升系统弹性。RDC® Emkore™ DE/ Emkore™ DS处理器平台适用于轻薄尺寸及无风扇设备设计要求的各式嵌入式应用。另外，双屏幕显示功能更适合导入于商业应用服务硬件平台，例如数字电子广告牌、自动提款机、智能型自动贩卖机、人机接口、精简型计算机及终端销售系统等应用。 操作系统支持包涵微软操作系统及DOS家族。
RDC® X86相容低功耗双核心，双数字信号处理器，全新架构先进制程，更优异的性能提升
产品应用
终端销售系统 公共信息机 人机界面应用 精简型计算机 | 嵌入式工业计算机应用 工业自动化控制设备 云端医疗系统 智能型自动贩卖机 | 自动提款机 车用信息娱乐系统 |
R3600
◆ Dual RISC Processor Core – Symmetric Multi-Processors – 6-stage pipeline – X86 instruction set ◆ Floating Point Unit Support – Extends CPU instruction set to include Trigonometric, Logarithmic and Exponential – Implements ANSI/IEEE standard 754-1985 for binary Floating-Point Architecture ◆ Branch Prediction Unit – Branch target buffer ◆ Translation Lookaside Buffer – 4-Kbyte page I-TLB 64 entries/ 4-Kbyte page D-TLB 64 entries – 4-Mbyte page I-TLB 8 entries/ 4-Mbyte page D-TLB 8 entries ◆ Embedded I / D Separated L1 Cache – 8-way 32-Kbyte I-Cache, 8-way 32-Kbyte write through D-Cache ◆ Embedded Unified L2 Cache – 4-way 512-Kbyte L2 Cache – Write through or write back policy ◆ DDR3 Control Interface – 32-bit data bus – DDR3 size up to 2 Gbytes ◆ GPU Control Unit – UMA Architecture – VGA Controller – 2D Graphics Engine support – Supports Single Display max resolution up to 1920x1440@60Hz | – Supports Dual Display max resolution up to 1280X1024@60Hz – Supports Display Device with one D-sub Analog Interface – Supports Display Device with one 24-bit or two 12-bit DVO Digital Interface to connect a third party LVDS/TMDS transmitter – Supports Display Device for TTL Panel with one 24-bit DVO Digital Interface – Support two DSP to accelerate Video decode. – Supports MPEG2 MP@HL video decode – Supports VC-1 AP@L2 720P up to 20Mbps video decode – Supports H.264 HP@L4.1 1080P up to 40Mbps video decode ◆ DSP Control Unit – X86 instruction set – 6-stage pipeline – 64-Kbyte I-Local SRAM, 4-Kbyte D-Local SRAM – 4-way 4-Kbyte I-Cache, 4-way 16-Kbyte D-Cache ◆ Fast Ethernet MAC ◆ SPI Interface – For boot up function from SPI flash ◆ JTAG Interface Supported for Software Debugging ◆ Input Clock – 25 MHz – 14.318 MHz ◆ Operating Voltage Range – Core Voltage: 1.0V± 5% – I/O Voltage: 1.5V ± 5%, 1.8V ± 5%, 3.3V ± 10 % ◆ Operating Temperature – -25℃~85℃ ◆ Package Type – 23x23mm, 420-Ball PBGA |
C6038
◆ IDE Controller – PATA 100 (HDD x 2) or SD x 2 at Primary Channel – SATA 1.5Gb/s (1 Port) at Secondary Channel ◆ PCIe Control Interface x 2 – Up to 2 sets of PCIe device – Compatible with PCI Express v1.1 ◆ HDA Controller ◆ 11-Bit ADC x 8 Channels – Effective Number of Bit=10 bits ◆ DMA Controller ◆ Counter / Timers – 2 sets of 8254 timer controllers (one for system, the other used as PWM Timer) – Output on the 2nd PWM Timer Controller ◆ Real Time Clock – Less than 2.5uA (3.0V) power consumption in Internal RTC Mode while chip is power-off ◆ FIFO UART Port x 7 (7 Sets of COM Port) – Compatible with 16C550 / 16C552 – Default internal pull-up – Supports the programmable baud rate generator with the data rate from 50 to 3Mbps – The character options are programmable for 1 start bit; 1, 1.5 or 2 stop bits; even, odd or no parity; 5~8 data bits – Supports TXD_EN Signal on COM1/2/3/4 | ◆ I2C Bus x 2 – Compliant with V2.1 – Does not support master code of general call, START and CBUS. ◆ General Programmable I/O – Supports 88 programmable I/O pins – Each GPIO pin can be individually configured to be an input/output pin – GPIO_P0 and GPIO_P1 with interrupt support (input/output) ◆ USB 2.0 Host Support – Supports HS, FS and LS – 4 ports ◆ Speaker Out ◆ Input Clock – 14.318 MHz – 32.768 KHz ◆ Output Clock – 24 MHz – 25 MHz ◆ Operating Voltage Range – Vcore Voltage:1.2V ± 5% – I/O Voltage: 1.8V ± 5% , 3.3 V ± 10 % ◆ Operating Temperature – -25℃ ~ 85℃ ◆ Package Type – 19x19mm, 441-Ball LFBGA |
|
